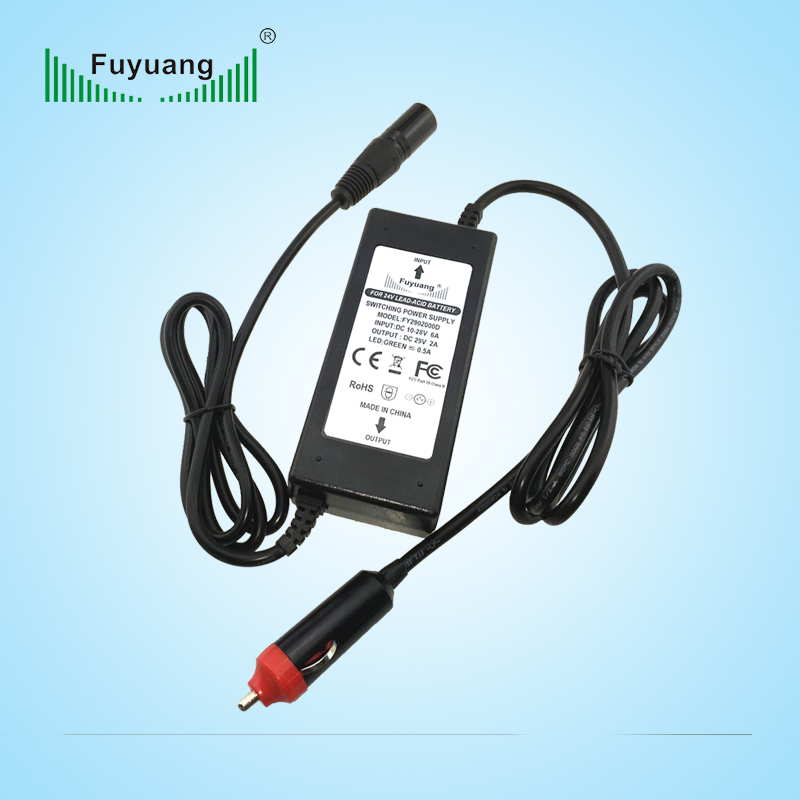

Input 12V/24V Car Charger DC 29.2V2A Lead Aicd Battery Charger with CE ROHS

  • FY2902000D

  • Fuyuang

  • 8504409999

  • Product Name: Car charger
  • Output: 29.2V2A
  • Usage: E-bike / Lead Aicd Battery Pack
  • Certifications: CE , EMC, ROHS, REACH
  • Warranty: 3 years
  • Country of Origin: China
  • Package: White Box + Export Carton
Quantity:
Inquire

Input 12V/24V Car Charger DC 29.2V2A Lead acid Battery Charger for E-bike

Features :
Red LED indicates charging status
Green LED indicates fully charged
Charging mode: CC-CV-Floating
Reverse polarity protection
With automatic identification circuit
Comply with CEC,Erp,MEPS regulations.
Energy Efficiency: VI level
Approvals: CE,EMC,FCC,ROHS,REACH

General Specifications:
Input 12-28VDC, 50/60Hz
Output voltage 29.2V
Output current 2A
Dimension 133X58X31mm
Inrush current 15A for a cold start
No load standby power ≤ 0.21W
Efficiency 92% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
Withstand Voltage 4K VAC
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
Warranty 3 years
AC plug Cigarette Lighter
DC cord 1M length
