14.6V 2A Lead Acid battery charger with UL

  • FY1502000

  • fuyuang

  • Socket Type: For USA/Canada
  • Type: Desktop
  • Output: 14.6V2A
  • Use: Standard Battery
  • Color: Black / White / Others
  • Certifications: UL,CE,GS,CB,SAA,PSE,KC,ROHS
  • Warranty: 3 years
  • MOQ: 300PCS
Quantity:
Inquire

14.6V 2A Lead Acid battery charger with UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC...


Input 100-240VAC, 50/60Hz
Output voltage 14.6V
Output current  2A
Dimension 113X43.5X30mm
Inrush current 15A for a cold start
No load standby power ≤ 0.21W
Efficiency 94% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
Payment 30% deposit, the rest 100% T/T before shipping

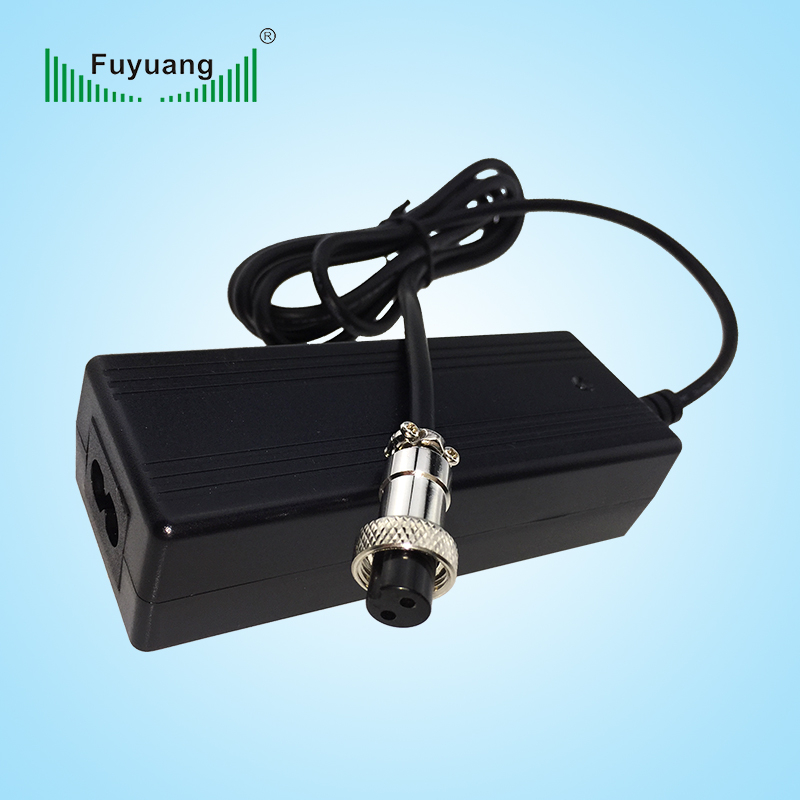

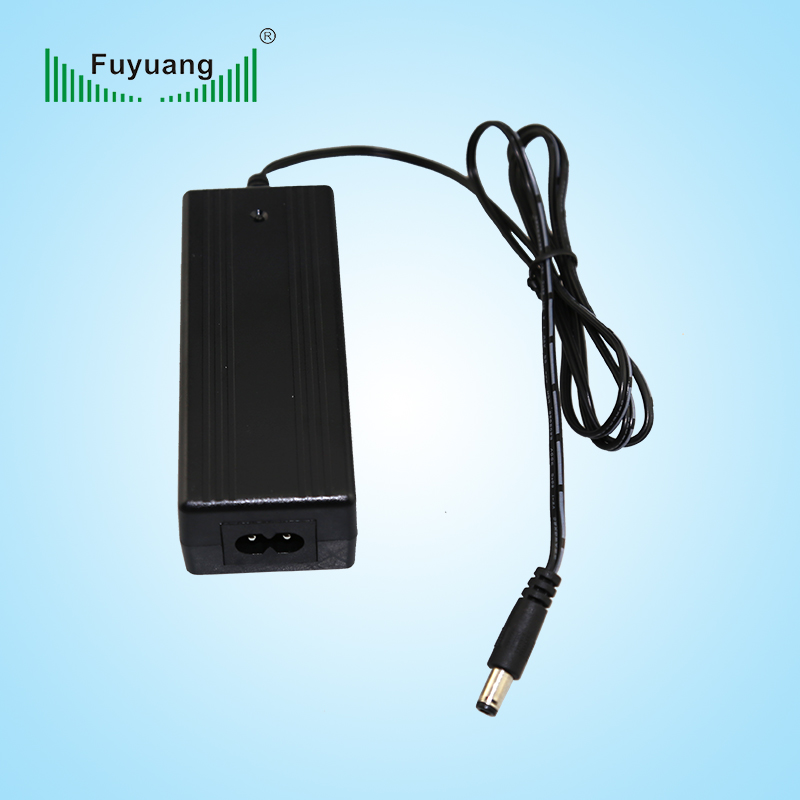

Product image:

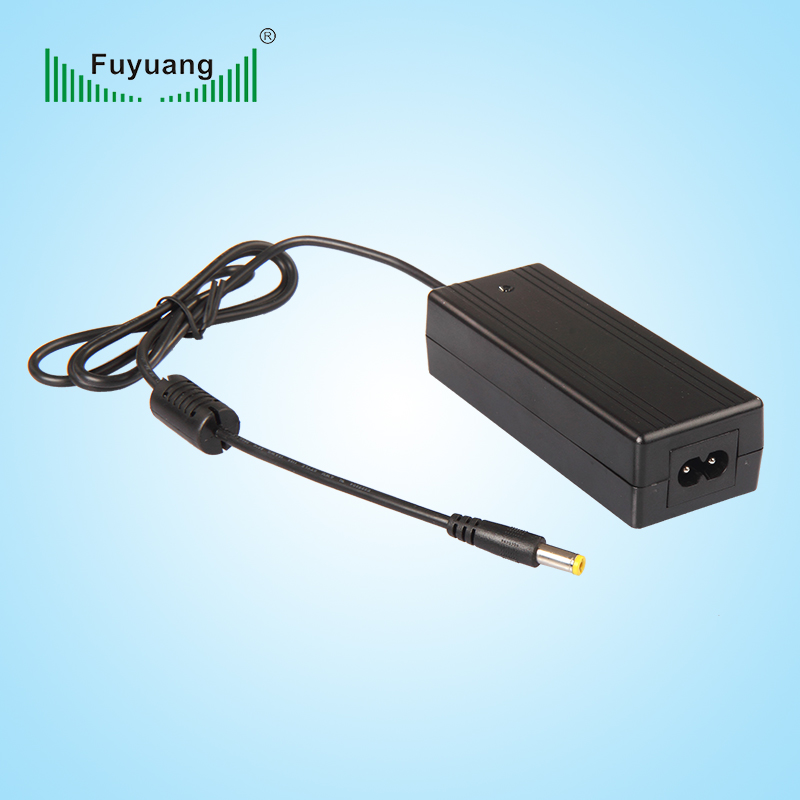

60W8字DC头5.5X2.1黄色

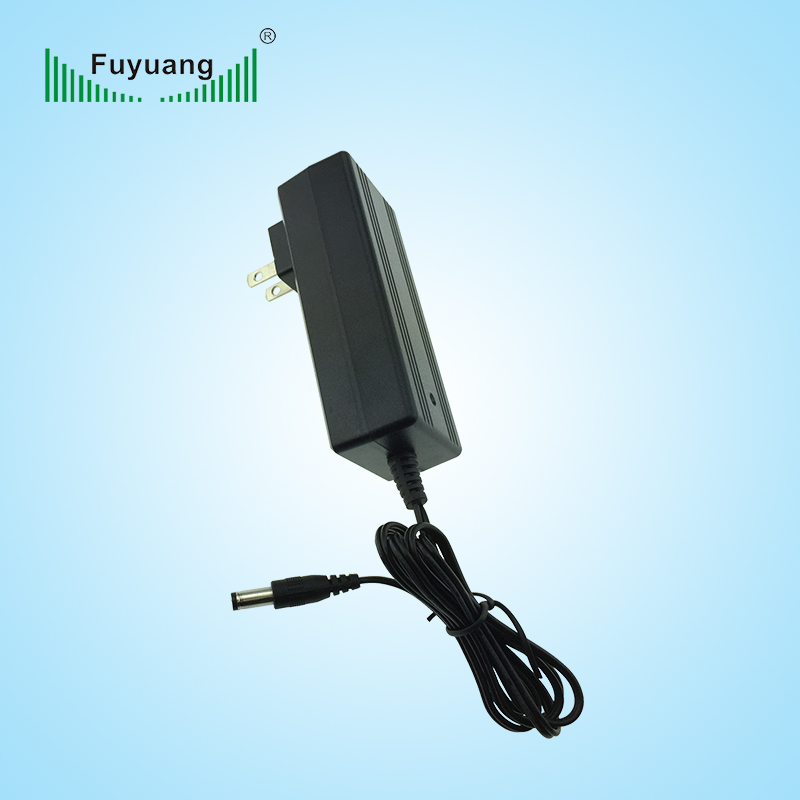

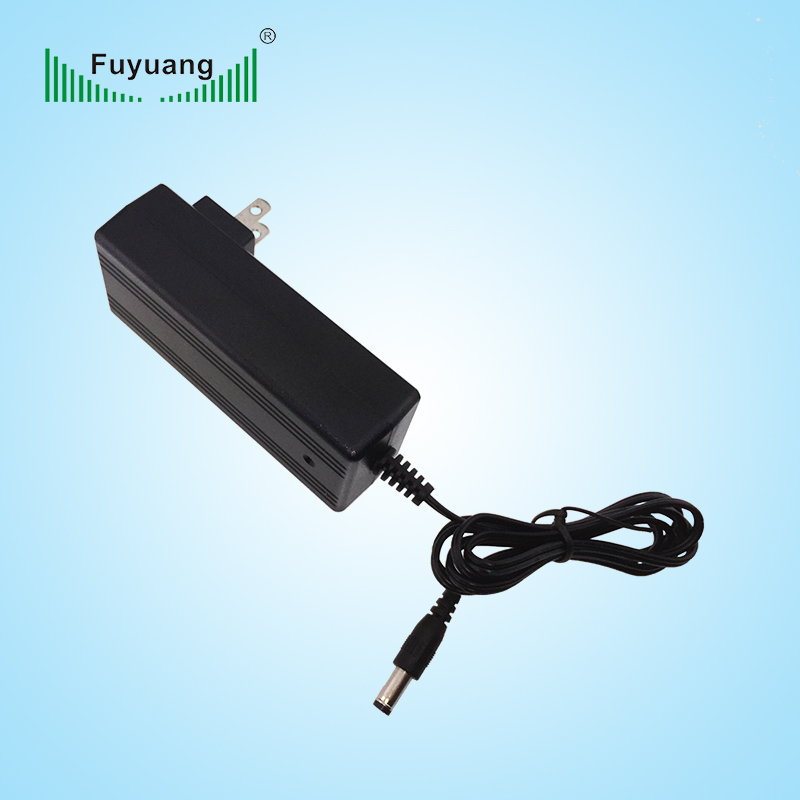

48W PSE DC头5.5X2.1X12
5
6
Based on 25 years' engineering experience, we specialized in 60-500W high-power power supply products. Our power adapter,battery charger and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), iRobot Scooba, Roomba Vacuum Cleaner, E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc - See more at: http://www.fuyuanpower.com/Professionally-Manufacture-Hight-power-DC-power-supply-500W-pd524922.html#sthash.AzU48Pa0.dpuf
