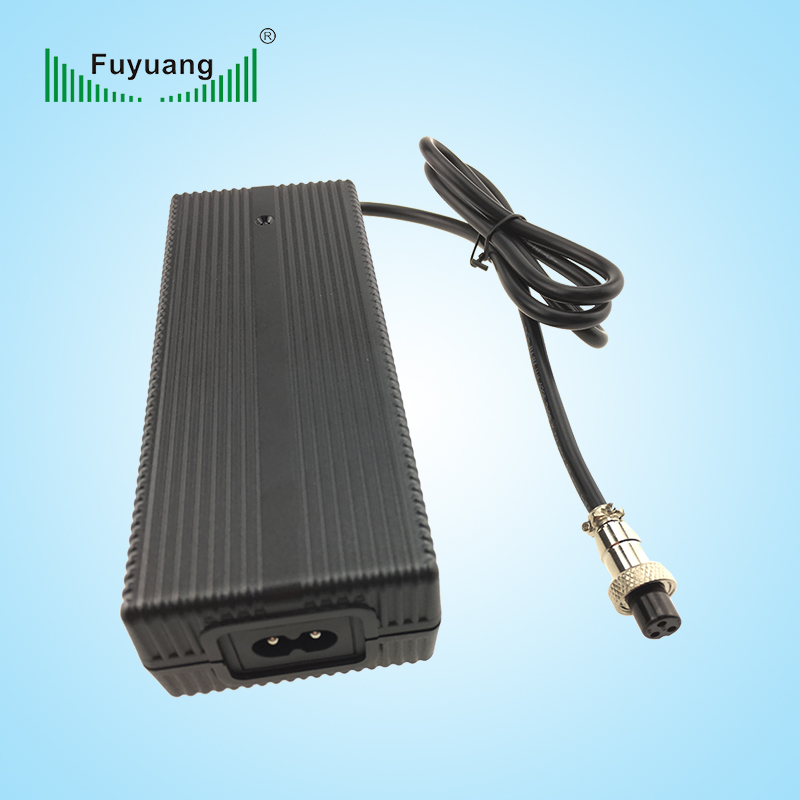

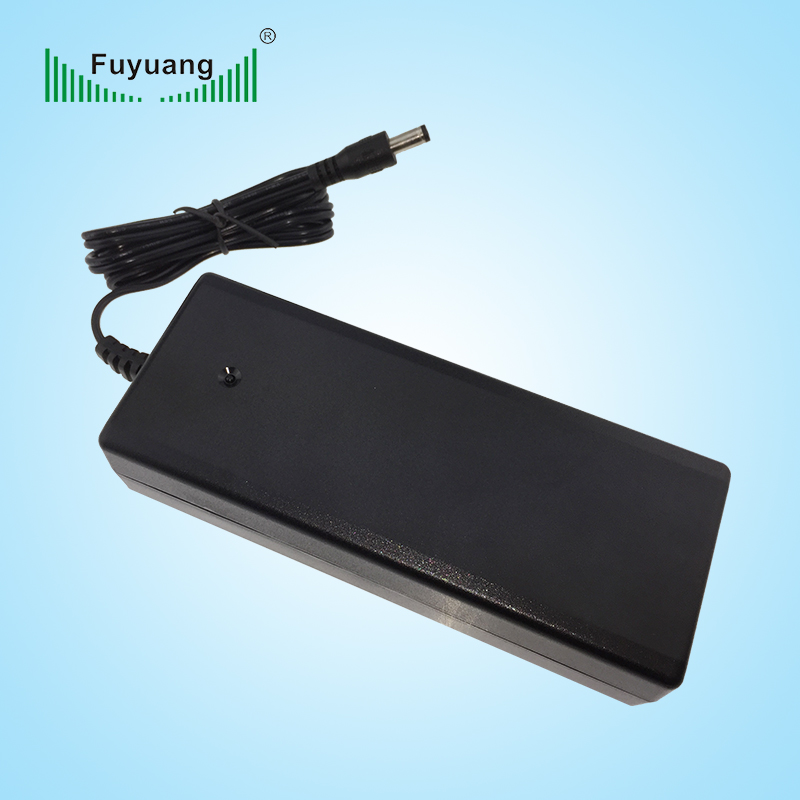

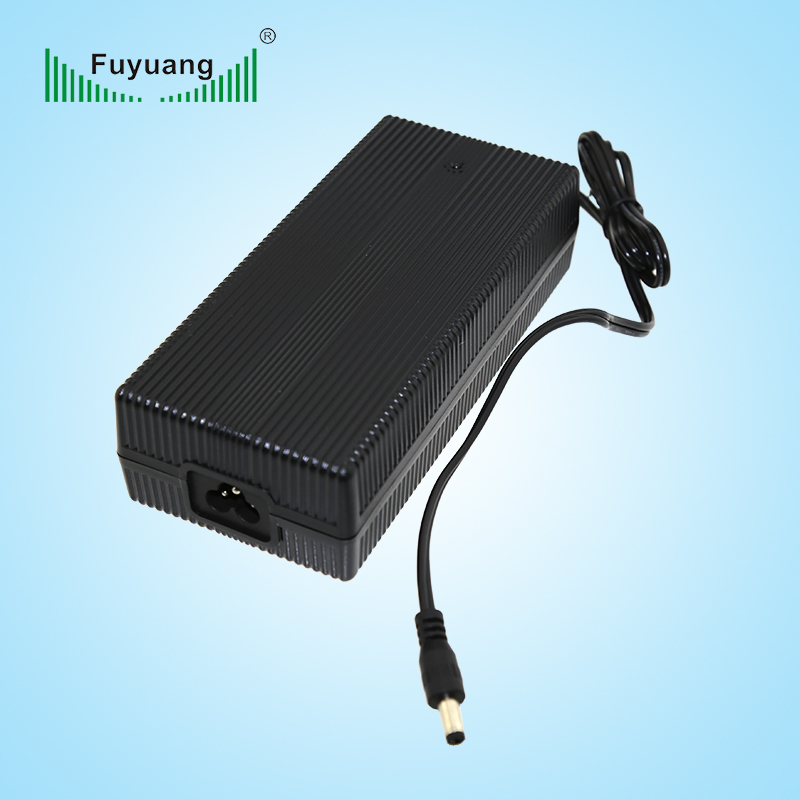

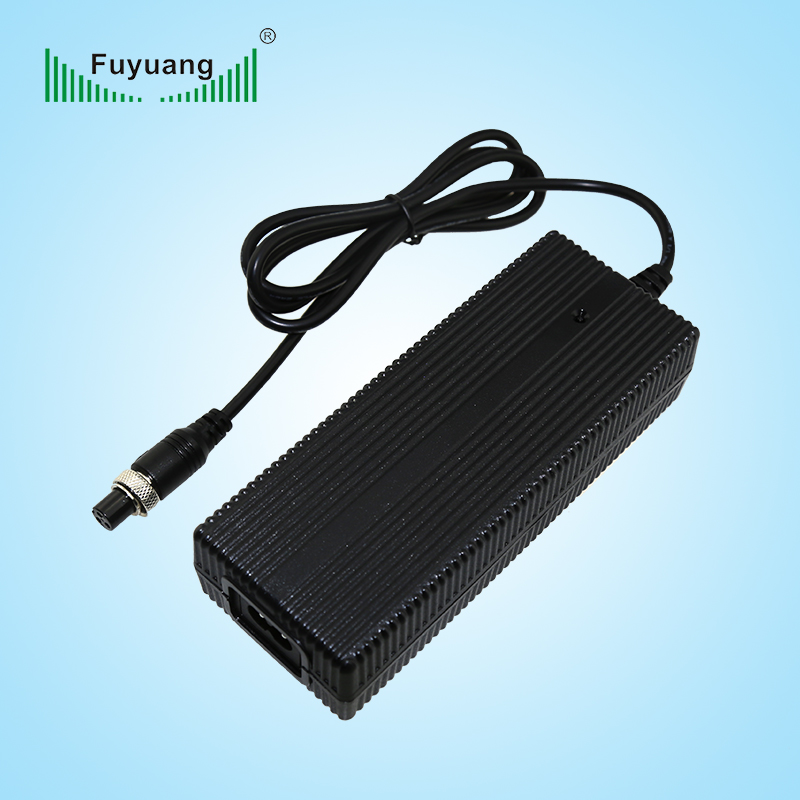

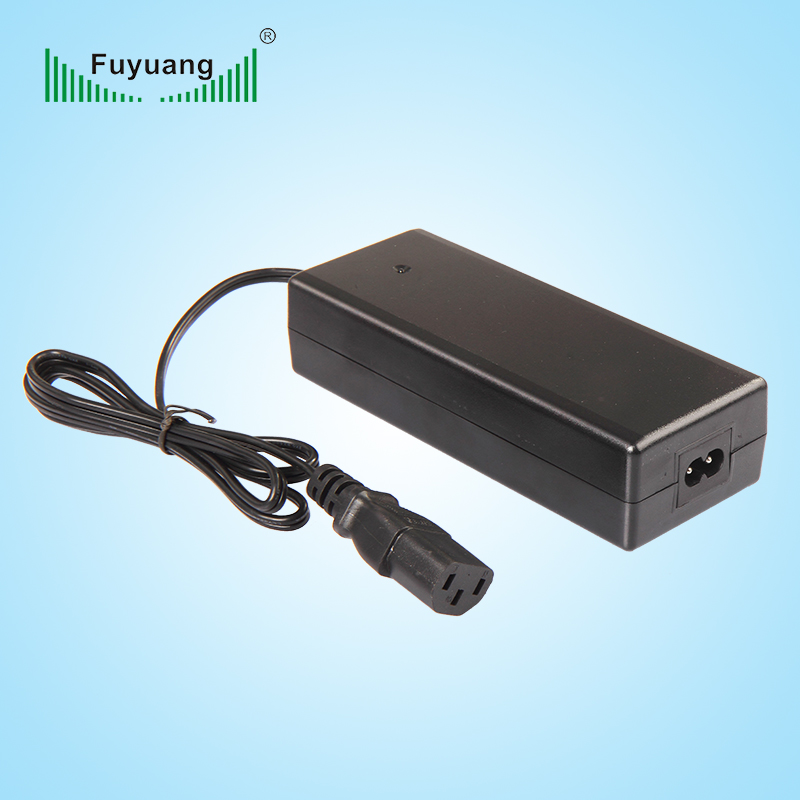

2 cells 29.2V 4A Lead Aicd Battery Charger with PSE

  • FY2904000

  • Fuyuang

  • 8504409999

  • Product Name: PSE 24V Battery Charger
  • Output: 29.2V4A
  • Color: Black / White / Others
  • Certifications: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC,
  • Warranty: 3 years
  • Country of origin: China
  • Package: White Box + Export Carton
Quantity:
Inquire

24V Lead Aicd Battery with PSE

Features :
Reverse polarity protection
LED light indicating charging status
Constant charging current for fast charging
3  Stage charging
Energy efficiency: VI level
Comply with CEC,Erp,MEPS regulations.
Certification: UL,cUL,GS,CE,CB,SAA,PSE,KC,RCM,EMC,C-tick,ROHS...

General Specifications:
Input 100-240VAC, 50/60Hz
Output voltage  29.2V
Output current 4A
Dimension 154X60X36mm
Inrush current 15A for a cold start
No load standby power ≤ 0.21W
Efficiency 92% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
Warranty 3 years
