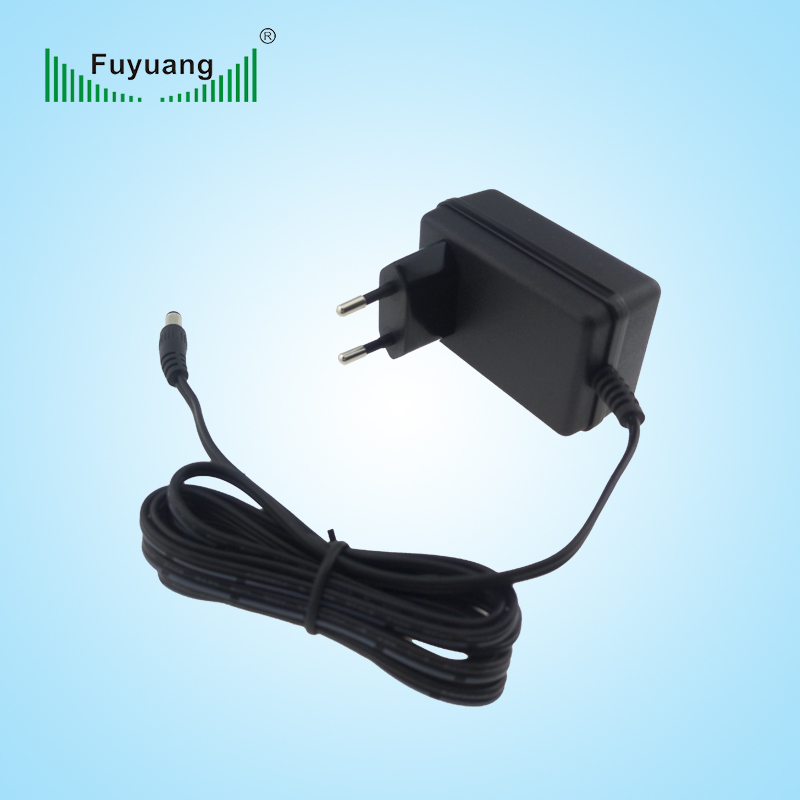

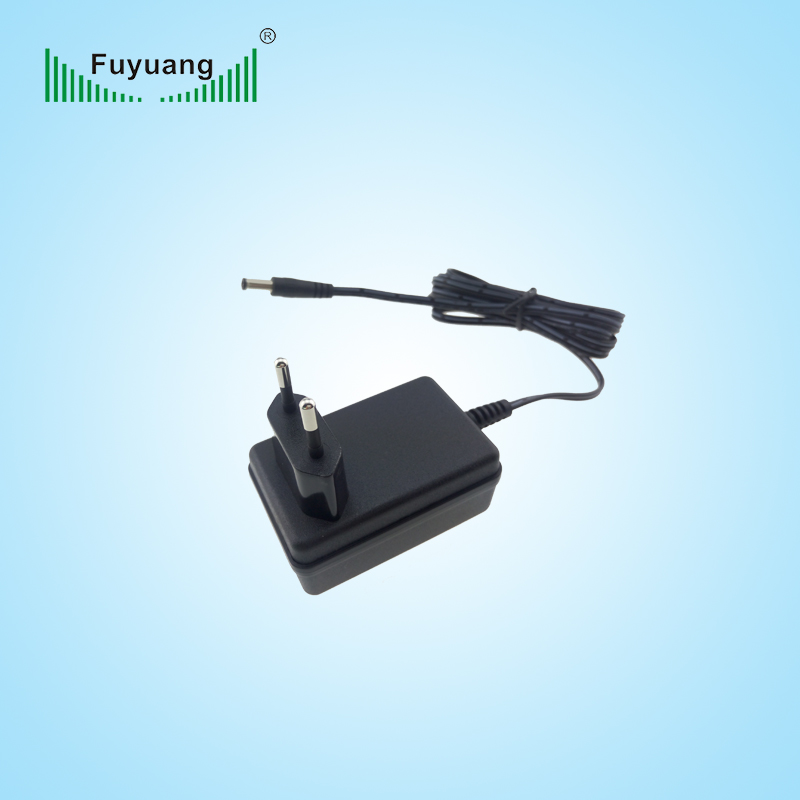

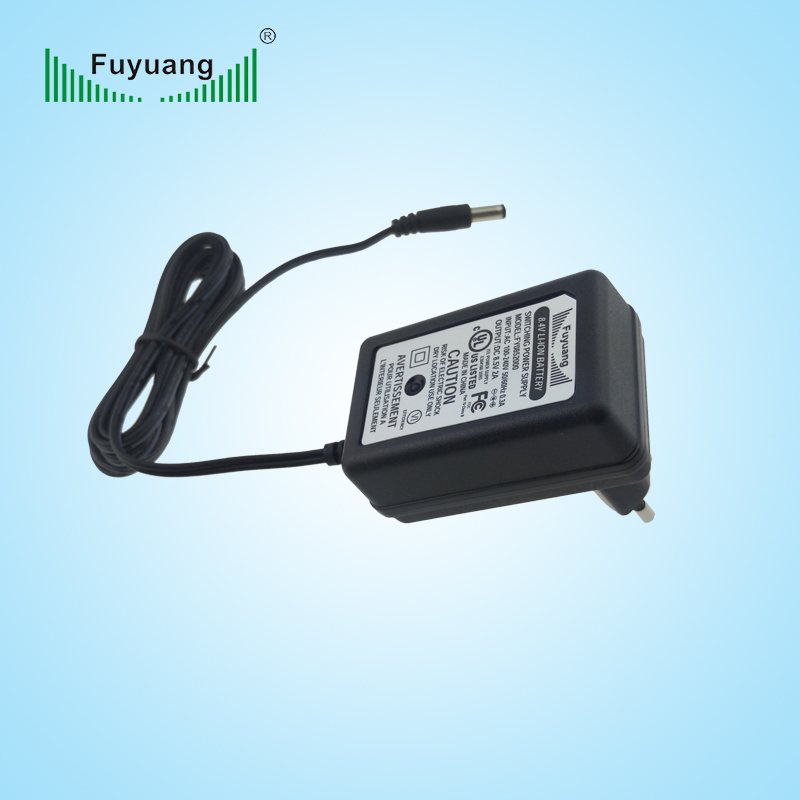

FY1202000 12V2A power supply with high quality

  • FY1202000

  • Fuyuang

  • 8504409999

  • Output: 12V2A
  • Application: power tools and electronic device
  • Color: Black / White / Others
  • Certifications: UL,CE,GS,CB,SAA,PSE,KC,ROHS
  • Warranty: 3 years
  • MOQ: 300
Quantity:
Inquire

12V2A Power Adapter with CE (FY1202000 )

Features:
Class II power
Level VI efficiency standard
LED indicates working status
Cooling by free air convection
Fully enclosed plastic case
Protection: Over voltage / Over current / Over load / Short circuit
Comply with CEC,Erp,MEPS regulations.
Approvals:TUV / UL / FCC / CE / GS / SAA /C-TICK / PSE / ROHS / REACH

General Specifications:
Input 100-240VAC, 50/60Hz
Output voltage 12.V
Output current 2A
Dimension 70X45X38
Inrush current 15A for a cold start
No load standby power ≤ 0.21W
Efficiency 85% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
Withstand Voltage 3K VAC
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
AC cable  No
AC plug US/EU/UK/AU/Japanese/Chinese/Korean plug
DC cord 1.8M length
