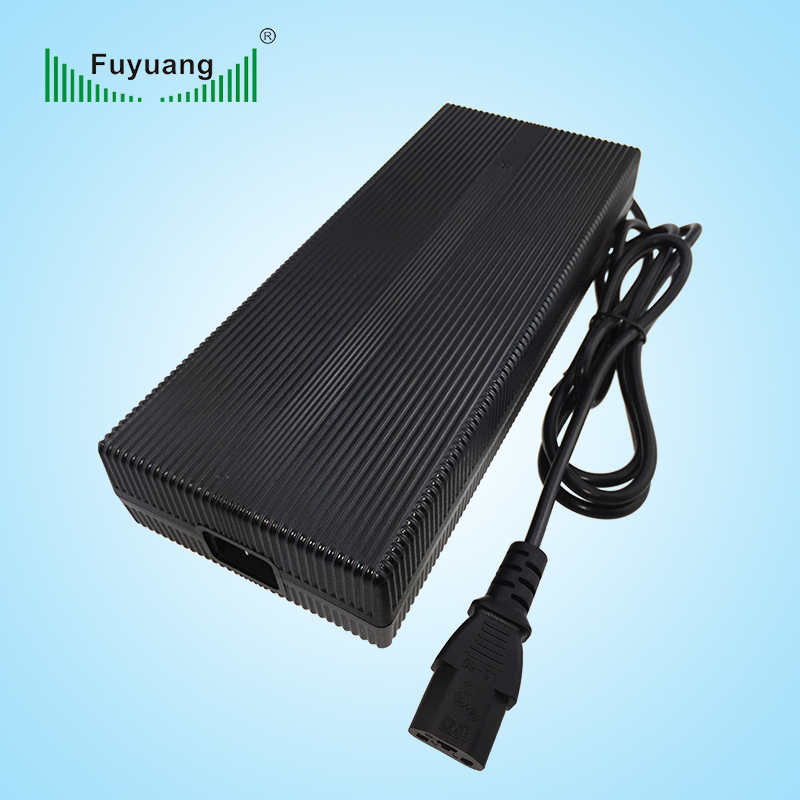

500W Desktop High Power Power Supply

  • Fuyuang

  • Connection: Desktop
  • Product Name: 500W Power Supply
  • Application: Electronic equipment
  • Case: Plastic / Metal
  • Color: Black / White / Others
  • Warranty: 2 years
  • MOQ: 100
Quantity:
Inquire

500W Desktop High Power Power Supply

Features:
Class II power
Level VI efficiency standard
LED indicates working status
Cooling by free air convection
Fully enclosed plastic case
Protection: Over voltage / Over current / Over load / Short circuit
Comply with CEC,Erp,MEPS regulations.

General Specifications:
Input 100-240VAC, 50/60Hz
Output voltage 58V Max /  500W
Output current 20A Max  / 500W
Dimension 255X107X48mm
Inrush current 30A for a cold start
No load standby power ≤ 0.21W
Efficiency 94% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
Withstand Voltage 3K VAC
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
AC cable 1.2M length
AC plug US/EU/UK/AU/Japanese/Chinese/Korean plug
DC cord 1M length
