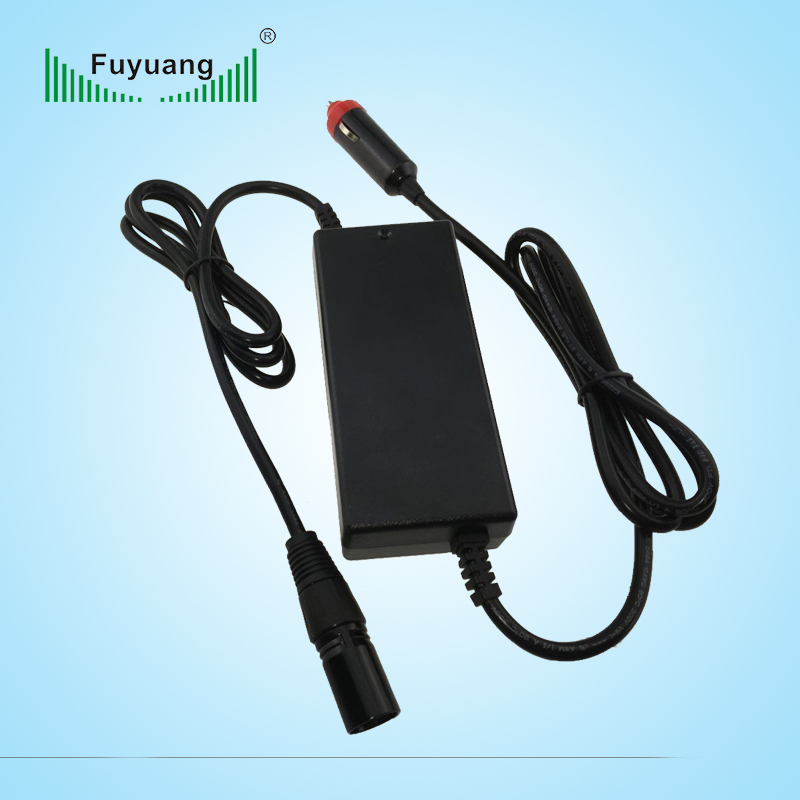

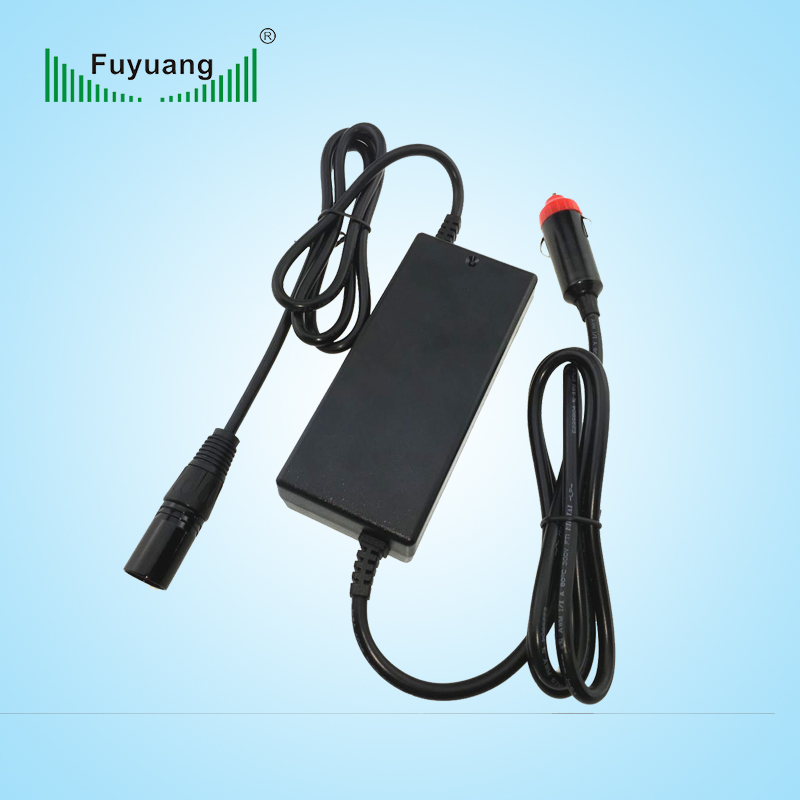

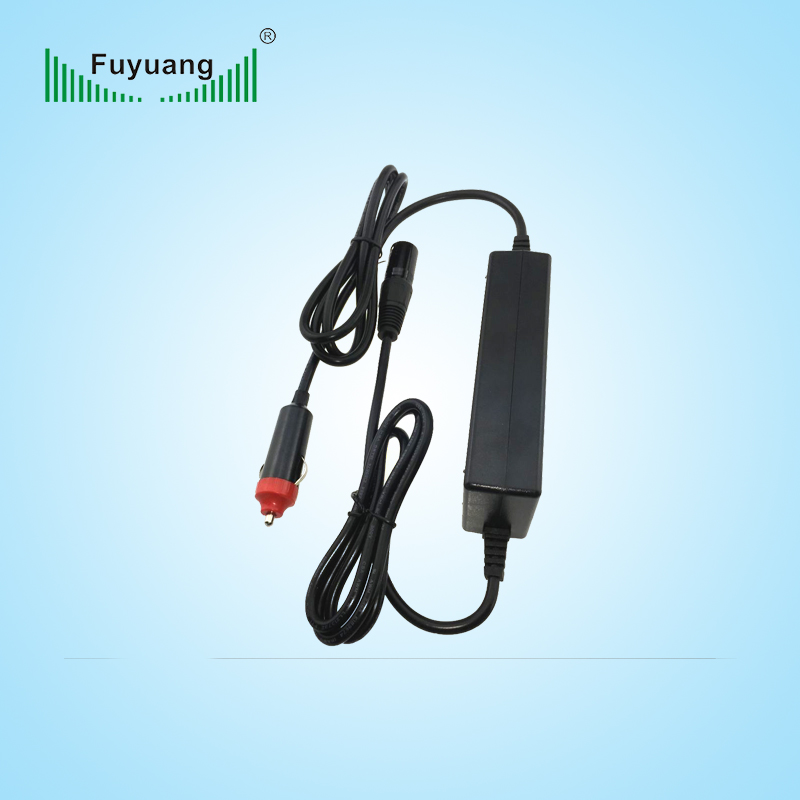

DC 12V/24V input car charger 12.6V 3A for li-ion battery

  • FY1263000D

  • Fuyuang

  • 8504409999

Availability:
Quantity:
Inquire

DC 12V/24V input car charger 12.6V 3A for li-ion battery

Features :
Red LED indicates charging status
Green LED indicates fully charged
Charging mode: CC-CV-Floating
Reverse polarity protection
With automatic identification circuit
Comply with CEC,Erp,MEPS regulations.
Energy Efficiency: VI level
Approvals: CE,FCC,ROHS,REACH

General Specifications:
Input 12-28VDC, 50/60Hz
Output voltage 12.6V
Output current 3A
Dimension 133X58X31mm
Inrush current 15A for a cold start
No load standby power ≤ 0.21W
Efficiency 92% the Min.
Operating temperature -29ºC ~+45.5ºC
Storage temperature -40ºC ~+75ºC
Over load protection Auto recovery
Short circuit protection Auto recovery
Withstand Voltage 4K VAC
MTBF 30000 hours full rated load operation at 25ºC
Inspection  MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Delivery time 2-3 weeks
Warranty 3 years
AC plug US/EU/UK/AU/Japanese/Chinese/Korean plug
DC cord 1M length
